When sending an envelope for signatures, you can control how it’s sent to recipients using the routing property in the Envelope. There are two options: Sequential and Parallel. By default, SignatureAPI uses parallel routing. With Sequential Routing, the envelope is sent to one recipient at a time, in the order you specify in the envelope’s recipient array. The next recipient only receives the document after the previous one has signed.
  • A single PDF document.
  • Two recipients (signers) signing in sequential order, the first one with the key disclosing_party and the second one with the key receiving_party.
  • Two signature places positioned with placeholders [[disclosing_party_signature]] and [[receiving_party_signature]].
All other envelope settings use the default configuration:
  • The recipient will receive an email with a link to sign.
  • The account’s default language, timezone, and timestamp format used.

​
Prepare your Document

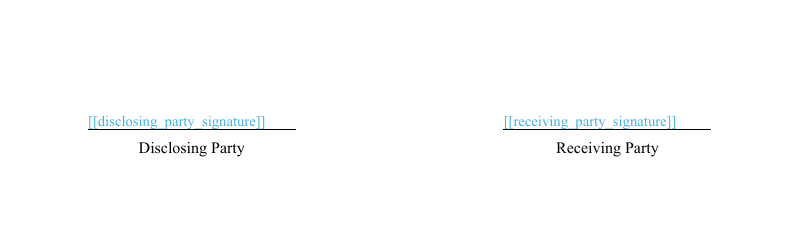

Placeholders are text markers within your PDF document indicating specific locations for items such as signatures, initials, or text inputs. Each placeholder follows the format [[place_key]], where place_key uniquely identifies the specific location within your document. In this example, we have prepared a document containing the placeholders [[disclosing_party_signature]] and [[receiving_party_signature]]. These placeholders mark the exact positions within the document where the signatures corresponding to each key (disclosing_party_signature and receiving_party_signature) will be inserted.

Example document

Download the PDF used in this example.
In our document, the placeholder is highlighted in blue for visibility. However, we recommend setting it to white so it remains invisible to the signer.

​
Create the Envelope

When creating the envelope:
  • Set the property routing to sequential.
  • Add your recipient objects to the recipients property of the Envelope in the order you want. In this example we want the disclosing_party to be first, and the receiving_party the second, so we must add them in that order in the array.
  • Add the signature place object for the two places to the places array inside the document object, with the following properties:
    • key: This identifies the place within the document. Must match what’s inside the square brackets in the placeholder inside the document file, in this case: disclosing_party_signature for the disclosing_party, and receiving_party_signature for the receiving_party.
    • type: As this is a signature place, we use the value signature.
    • recipient_key: The key of the recipient that will sign in this place. In this example, disclosing_party and receiving_party
// POST https://api.signatureapi.com/v1/envelopes
// X-Api-Key: <Your API Key>

{
    "title": "Dummy NDA",
    "message": "Please review and sign the following Non-Disclosure Agreement (NDA) for internal testing purposes. This document is not legally binding and is used solely for demonstration\n\nThank you for your cooperation.",
    "routing": "sequential",
    "documents": [
        {
            "url": "https://pub-9cb75390636c4a8a83a6f76da33d7f45.r2.dev/dummy-nda.pdf",
            "places": [
                {
                    "key": "disclosing_party_signature",
                    "type": "signature",
                    "recipient_key": "disclosing_party"
                },
                {
                    "key": "receiving_party_signature",
                    "type": "signature",
                    "recipient_key": "receiving_party"
                }
            ]
        }
    ],
    "recipients": [
        {
            "type": "signer",
            "key": "disclosing_party",
            "name": "Jane Doe",
            "email": "jane@example.com"
        },
        {
            "type": "signer",
            "key": "receiving_party",
            "name": "Richard Roe",
            "email": "richard@example.com"
        }
    ]
}

​
Result

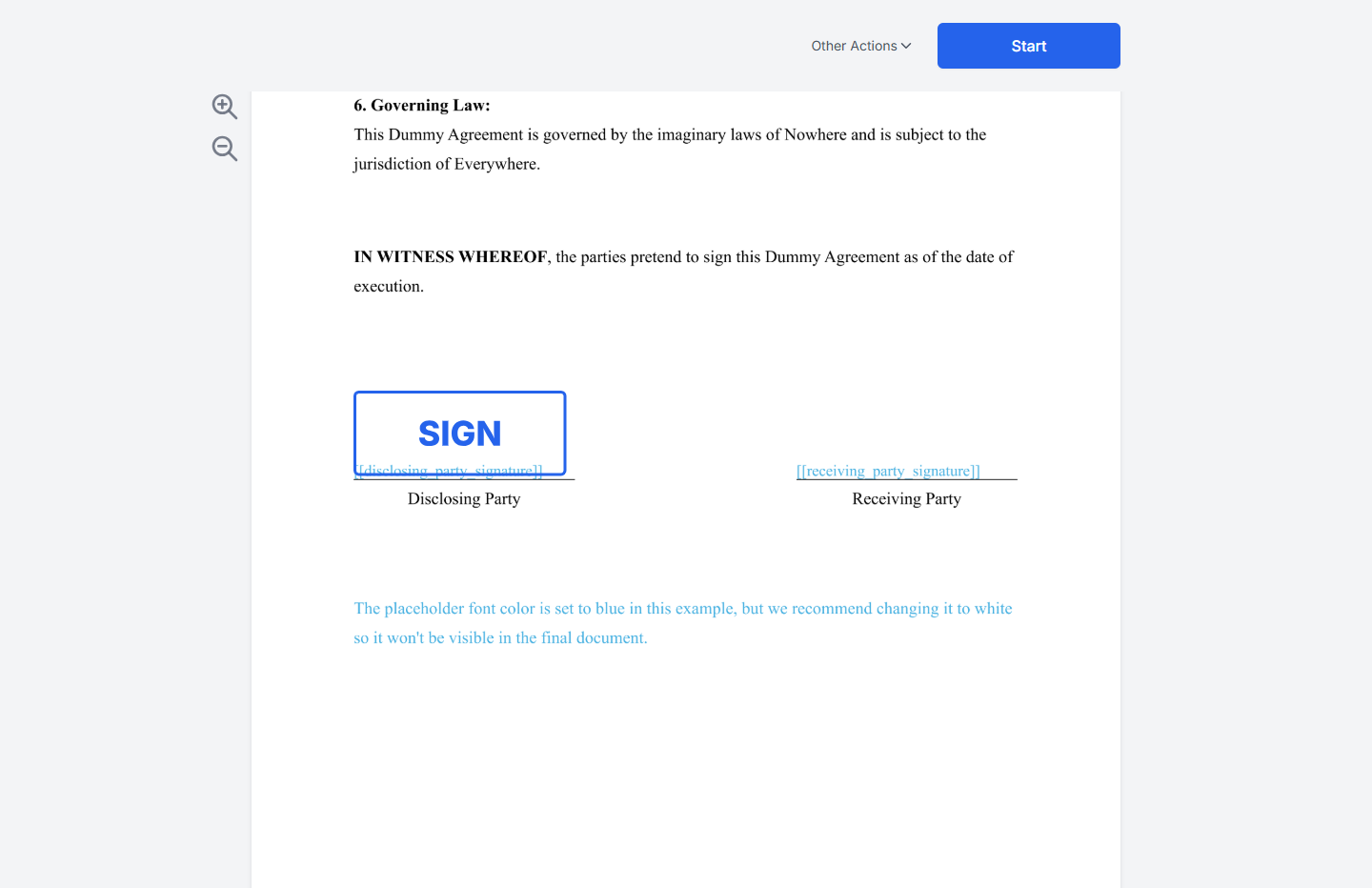

If the request is successful, SignatureAPI will send Jane Doe (the “disclosing_party”) an email with a link to sign, while Richard Roe (the “receiving_party”) will remain in awaiting status until Jane completes. Jane will click the link and place her signature on the signature line. After Jane completes, SignatureAPI will send Richard Roe (the “receiving_party”) an email with a link to sign. Richard will click the link, and will be able to place his signature on his signature line.

​
Try It

Try this example in Postman using your test API key to create a free, non-binding test envelope. Test envelopes won’t send emails, but you can review them in your dashboard.

​
